Our Products : Bar & Hollow Bar : Nimonic 75/UNS N06075 Bar & Hollow Bar
| Standard: | AISI, ASTM, UNS, SAE, JIS, B.S., DIN |
| Grades: | |
| Dimensions(mm): | 3-3000mm |
| Place of Origin: | Sichuan, China (Mainland) |
| Technique: | Hot-rolled |
| Payment Terms: | 30% advanced payment,the balance will be paid before shipment. |
| Minimum Order Quantity: | 1.5 Ton/Tons |
| Port: | Chongqing & Shanghai |
| Packaging Details: | in bundle according to your requirement |
| Delivery Time: | about 30-90 days |
| Supply Ability: | 500000 Ton/Tons per Month |
Detailed Product Description

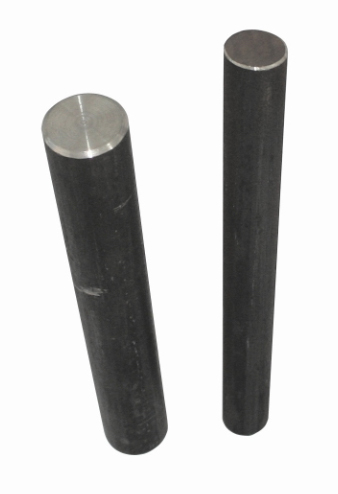

Nimonic 75/UNS N06075 Bar & Hollow Bar
Physical Properties：
Density： 8.37g/cm3 Melting Point：2450-2520℃
Modulus of Elasticity： 140-221GPa Thermal Conductivity： 11.7 W/m• °C
Hardness： - Brinell 241 Electrical Resistivity( 20 - 100°C)： 11.0 μm/m/°C
Approx Service Temperature：-200 to +1100°C
Main Characteristics：Good heat resistance , creep rupture resistance and mechanical properties
Applications：Used in parts of furnace, combustion chamber, gas turbine and heat-treating facility connecting piece
Specification：Forgings,Rod, Plate, Strip,Ring, Wire, Bolts, Springs and other consultations supply, according to customer's production
Chemical Compositions：
| Chemical Compositions(%) | ||||||||||
| C | Cr | Ni | Ti | Fe | Cu | Mn | Si | |||
| 0.08 - 0.15 |
18.0 - 21.0 |
rem | 0.20 - 0.60 |
0.50 max | 0.50 max | 1.00 max | 1.00 max | |||
